USE AREAS
Used primarily in roof voids and lofts to achieve fire-rated compartmentation lines throughout a building.
Extensively used in social housing, care homes and healthcare, separating accommodation and living spaces.
Also used in larger areas within industrial, warehousing, food processing, data centres and offices to create required compartmentation zones.
CONSTRUCTION
FIREFLY® Zeus Lite 90:30 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance.
KEY BENEFITS
- FIREFLY® Zeus Lite 90:30 provides a combined 90 minutes Integrity and 30 minutes Insulation
- Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage
- Lightweight, flexible, easy to handle and cut
- Installer-friendly fire barrier system
- Fully tested to BS476 and independently certified by IFCC/Kiwa
- FIREFLY® Zeus Lite 90:30 is supported by a full range of FIREFLY® ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system
TITLE
FIREFLY® Zeus Lite 90:30
DESCRIPTION
Lightweight flexible fire barrier – combined Integrity and Insulation
CERTIFICATION
Third party certified by IFCC/Kiwa. Certificate number: IFCC 1462
APPLICATION
Vertical use only (see Zeus Horizontal 60:30 for alternative)
PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration
Min Thickness: 6mm
SPECIFICATIONS
Exceeds 90 minutes Integrity and 30 minutes Insulation when tested to BS 476 parts 20/22:1987
ASSESSMENT IFCC
Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements
CLASSIFICATIONS
Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)

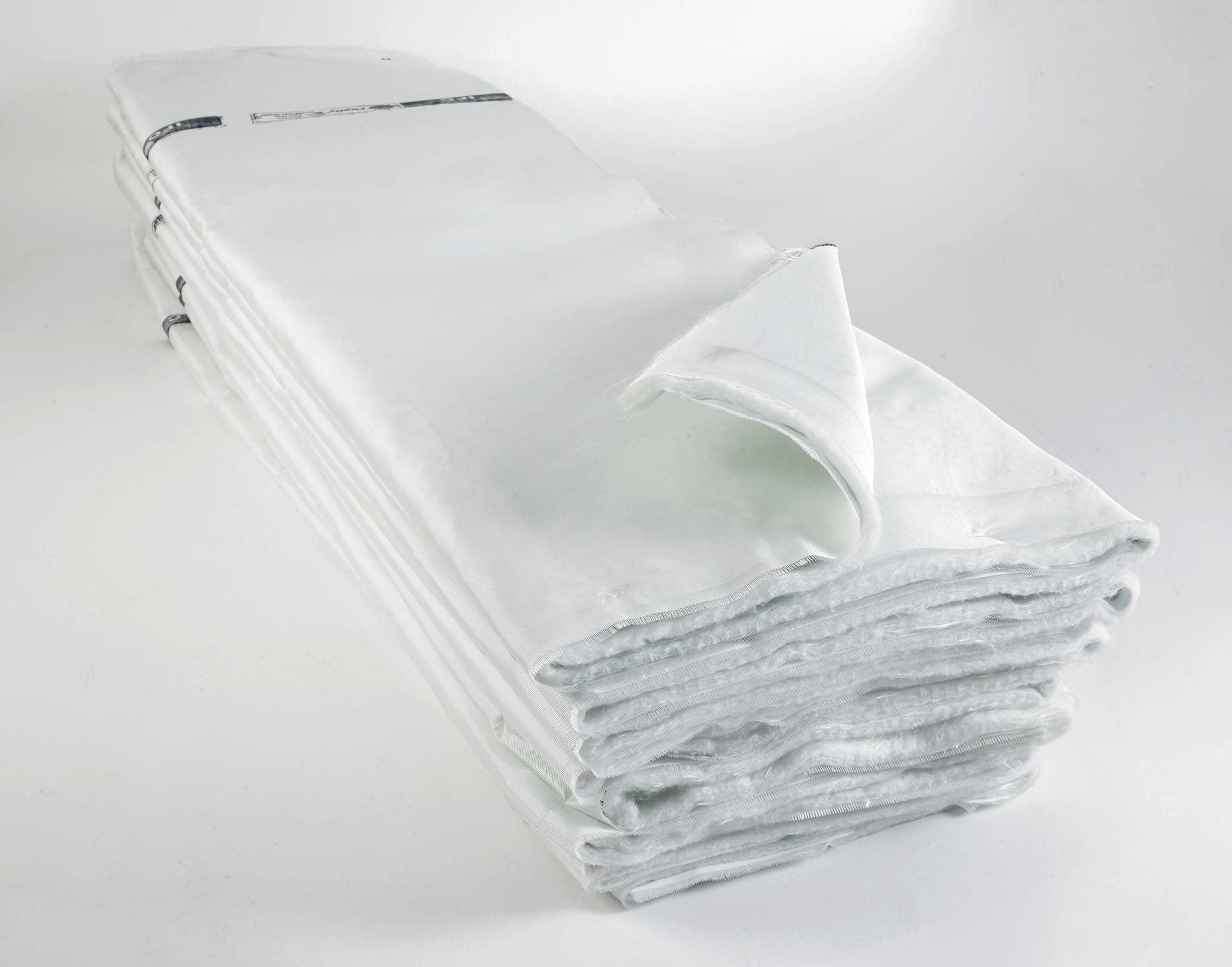

DIMENSIONS AND PACKAGING
Width: 127cm
Roll Length: 6 linear metres
Roll Area: 7.62 sqm
Packed: Concertinaed and individually wrapped in polythene
Weight: 1.44kg/m2 minimum
